XQP150

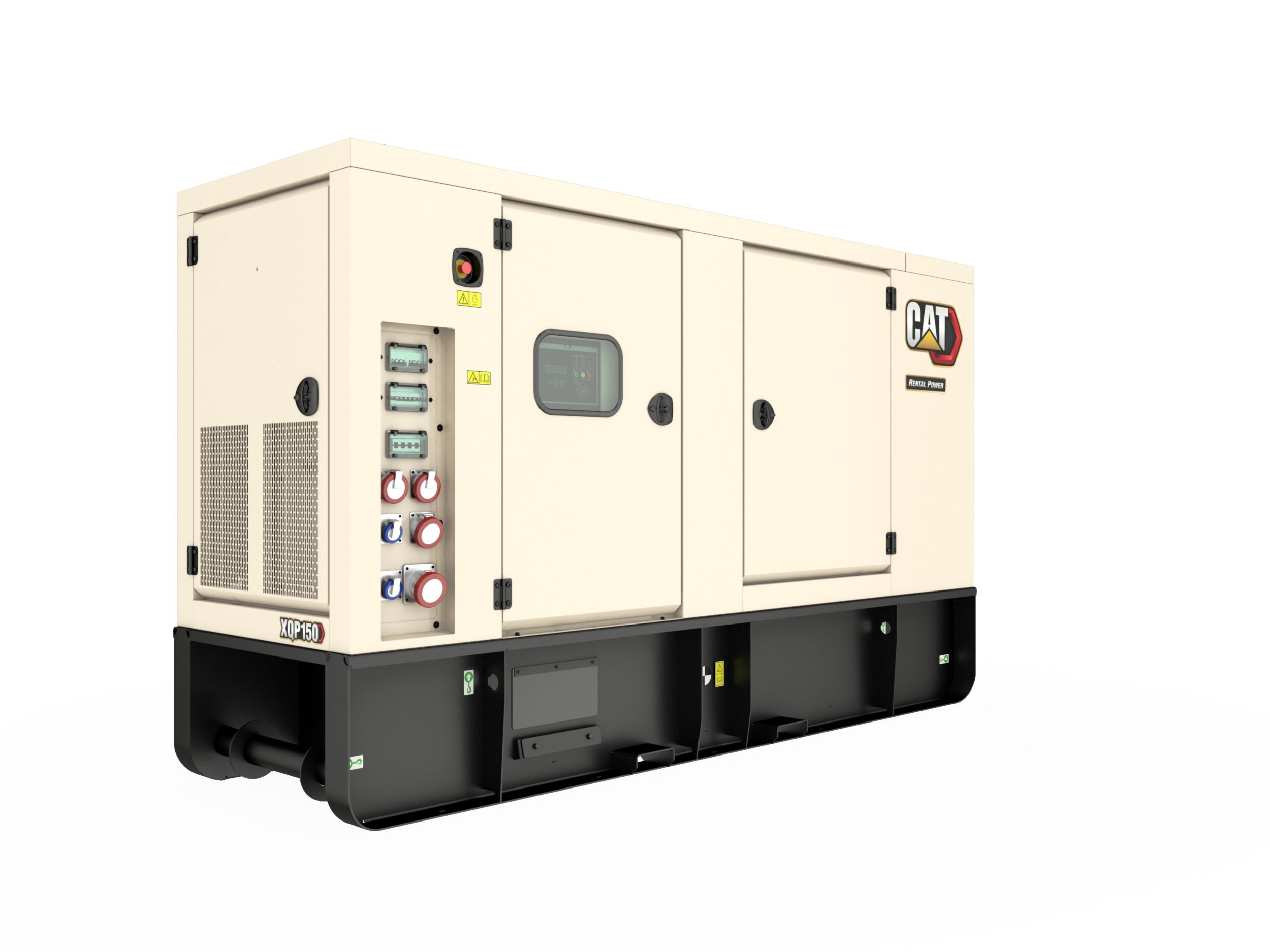

  • Exterior View

XQP150

Rating 150 kVA Prime
Frequency 50/60 Hz
Voltage 127 - 480 V
Engine Cat C7.1
Fuel Diesel
Width 44 in
Request a Quote Download Brochure
Generator
Rating 150 kVA Prime
Prime Power 10
IPP Rated 60Hz 73.1 dB(A)
Generator Set
Frequency 50/60 Hz
Voltage 127 - 480 V
Rating Prime 150 kVA
Engine
Engine Cat C7.1
Fuel Diesel
Dimensions
Width 44 in
Height 88 in
Length 139 in
Weight 5,615 lb
Weight - With Lube Oil and Coolant 5,615 lb
Fuel Consumption EU Stage IIIA
100% Load 60Hz 11 gal/hr
75% Load 50Hz 8 gal/hr
75% Load 60Hz 9 gal/hr
50% Load 50Hz 5 gal/hr
50% Load 60Hz 6 gal/hr
100% Load 50Hz 10 gal/hr
100% Load 60Hz 11 gal/hr
75% Load 50Hz 8 gal/hr
75% Load 60Hz 9 gal/hr
50% Load 50Hz 5 gal/hr
50% Load 60Hz 6 gal/hr
Fuel consumption Best Fuel Efficiency
100% Load 50Hz 9 gal/hr
100% Load 60Hz 11 gal/hr
75% Load 50Hz 7 gal/hr
75% Load 60Hz 8 gal/hr
50% Load 50Hz 4 gal/hr
50% Load 60Hz 5 gal/hr
100% Load 50Hz 9 gal/hr
100% Load 60Hz 11 gal/hr
75% Load 50Hz 7 gal/hr
75% Load 60Hz 8 gal/hr
50% Load 50Hz 4 gal/hr
50% Load 60Hz 5 gal/hr
Noise rating (with enclosure) EU Stage IIIA
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 73.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A)
Noise rating (with enclosure) Best Fuel Efficiency
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 78.3 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 78.3 dB(A)

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C7.1 Diesel Engine

Industry proven reliability.

XQCP Control Panel

Easy to use digital controls.

Cat LC3114J Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

500 hr Oil Change Intervals

Reducing operating costs and producing less waste.

Improved Transportability

Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Synchronising controls. Distribution sockets. Extended Service interval kits.

  • Cat C7.1 Diesel Engine
    • Turbocharged
  • Generator
    • LC3114J Frame
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator
  • Cat Connect Remote Monitoring
    • Provides package monitoring and management
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator
  • Fuel System
    • 24 hour dual wall fuel tank with 3 way directional valve for external supply
  • Control Panel
    • Digital XQCP set mounted controller
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Exhaust
    • Integrated spark arresting silencer
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory
  • General
    • Factory tested and inspected
×
