Cat?� C7.1 Diesel Engine

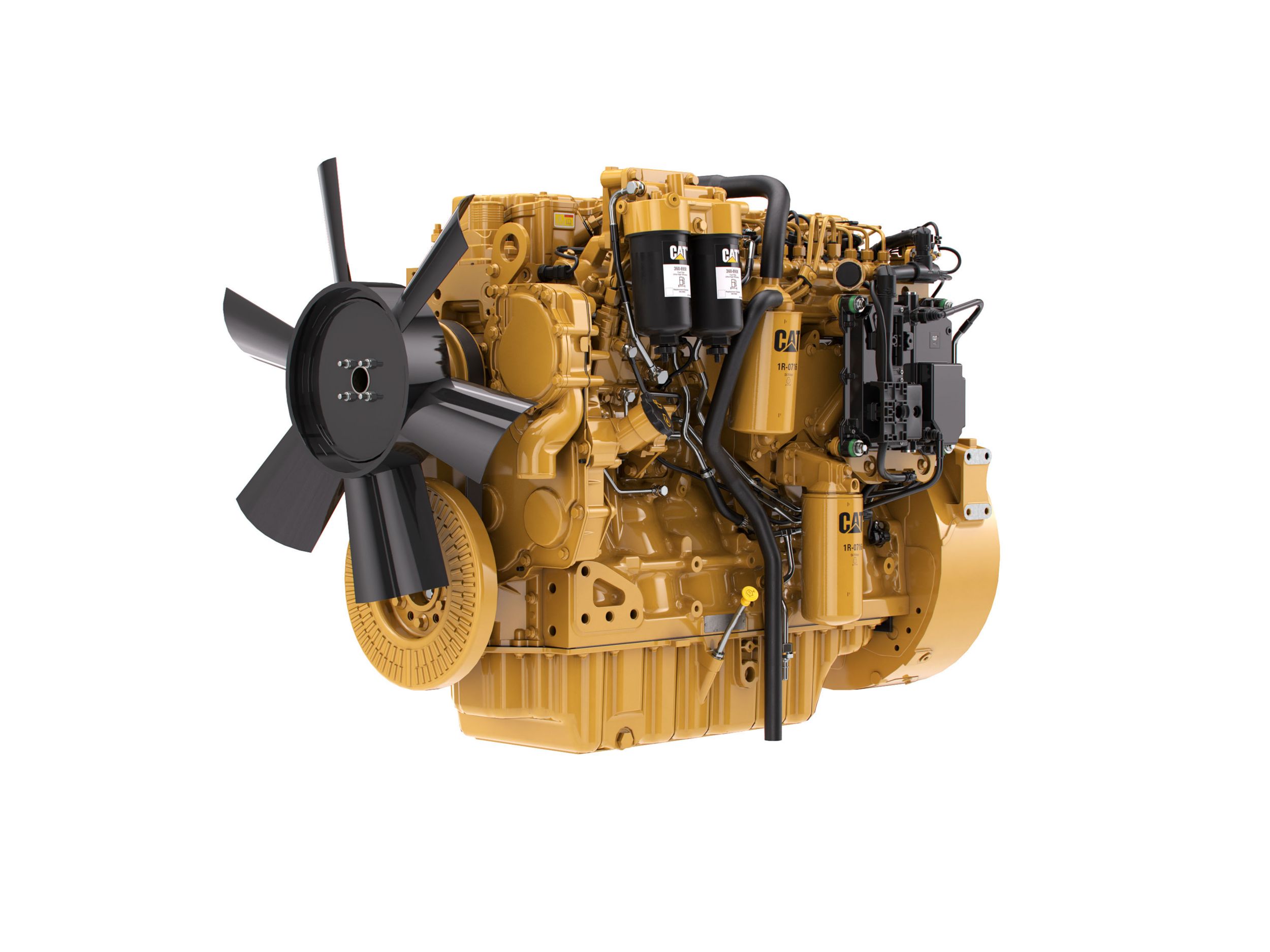

  • Exterior View

Cat?� C7.1 Diesel Engine

Minimum Power 156 bhp
Maximum Power 275 bhp
Emissions China Nonroad III, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
Rated Speed 2200 rpm
Engine Configuration In-Line 6, 4-Stroke-Cycle Diesel
Bore 105 mm (4.1 in)
Request a Quote
Power Rating
Minimum Power 156 bhp
Maximum Power 275 bhp
Rated Speed 2200 rpm
Minimum Power 156 HP
Maximum Power 275 HP
Rated Speed 2200-2500 rpm
Maximum Torque 774 lb-ft @ 1400 rpm
Maximum Power 275 hp
Maximum Torque 774 lb-ft @ 1400 rpm
Rated Speed 2200-2500 rpm
Minimum Power 156 hp
Emission Standards
Emissions China Nonroad III, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
General
Engine Configuration In-Line 6, 4-Stroke-Cycle Diesel
Bore 105 mm (4.1 in)
Stroke 135 mm (5.3 in)
Displacement 7.01 L (427.7 in³)
Aspiration Turbocharged Aftercooled (TA)
Rotation (from flywheel end) Counterclockwise
Engine Configuration In-Line 6, 4-Stroke-Cycle Diesel
Bore 105 mm (4.1 in)
Stroke 135 mm (5.3 in)
Aspiration Turbocharged Aftercooled (TA)
Displacement 7.01 L (427.7 in³)
Rotation from Flywheel End Counterclockwise
Bore 4 in
Stroke 5 in
Displacement 428 in³
Aftertreatment -
Engine Configuration In-Line 6, 4-Stroke-Cycle Diesel
Bore 4 in
Stroke 5 in
Displacement 428 in³
Aspiration Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
Length 929 mm (35.5 in)
Width 725 mm (28.5 in)
Height 835 mm (32.87 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments) 524 kg (1155 lb)
Engine Dimensions - Approximate
Height 835 mm (32.87 in)
Length 929 mm (35.5 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 524 kg (1155 lb)
Width 725 mm (28.5 in)
Width 26 in
Height 32 in
Length 37 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 1,115 lb
Length 37 in
Width 26 in
Height 32 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 1,115 lb

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Series turbocharging with smart wastegate available on specific ratings for fast response, high power, and increased torque.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
  • Air Inlet
    • Standard air cleaners
  • Control System
    • Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments, flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • Cooling System
    • Top tank temperature 108°C (226°F) as standard to minimize cooling pack size, 50:50 water glycol mix, detailed guidance on cooling system design and validation available to ensure machine reliability
  • Exhaust System
    • Diesel particulate filter and regeneration system supplied, with a range of inlet and outlet options
  • Flywheels And Flywheel Housing
    • Wide choice of drivetrain interfaces, including SAE1, SAE2 or SAE3 configurations
  • Fuel System
    • Electronic high pressure common rail, ACERTTM Technology, innovative filter design to ensure maximum protection of the engine.
  • Lube System
    • Wide choice of sumps for different applications
  • Power Take Off
    • SAE A or SAE B flanges on left-hand side. Right- hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications, factory fitted compressors are also available.
  • General
    • Paint: Caterpillar yellow, with optional colors available at request
×
