C7.1

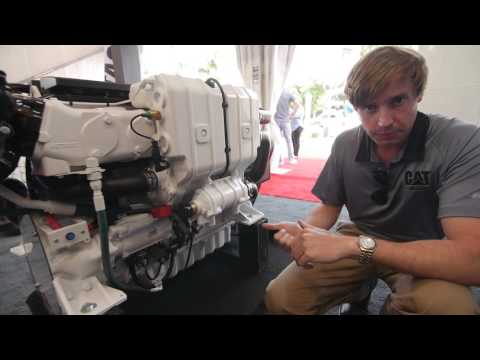

  • Exterior View

C7.1

Length 43 in
Height 35 in
Minimum Width 31 in
Configuration In-line 6, 4-stroke-cycle diesel
Maximum Width 34 in
Emissions U.S. EPA Tier 3, IMO II, RCD II, China II
Dimensions & Weights
Length 43 in
Height 35 in
Minimum Width 31 in
Maximum Width 34 in
Dry Weight 1,676 lb
Minimum Engine Dry Weight 1,609 lb
Maximum Engine Dry Weight 1,676 lb
Width 31 in
Engine Specifications
Configuration In-line 6, 4-stroke-cycle diesel
Emissions U.S. EPA Tier 3, IMO II, RCD II, China II
Rated Engine Speed 2300 - 2700 rpm
Bore 4 in
Stroke 5 in
Displacement 428 in³
Aspiration Turbocharged-aftercooled
Governor Electronic (A5E2 V2 ECM)
Refill Capacity 20 L (5.3 gal)
Oil Change Interval 500 hrs
Cooling Heat exchange or keel cooled
Flywheel Housing SAE No. 03
Rotation Counterclockwise from the flywheel end
Speed Range 2300 - 2700 rpm
Application Workboat
Power Rating
Power Range 280 bhp - 425 bhp (209 bkW - 317 bkW)

Up to 425 bhp Power Range

Commercial propulsion ratings from 280 to 425 bhp provide options for different vessel operating profiles.

Extended Oil Change Intervals

Up to 500 hours in extended oil-change intervals help reduce the frequency of routine engine service.

Compact Package

The compact inline-six configuration supports installation in space-conscious engine rooms.

Two Cooling Configurations

Choose from heat exchanger or keel-cooled configurations based on vessel requirements.

  • General
    • Marine Classification Society (MCS) Approval
  • Water-cooled turbocharger and exhaust manifold
  • Vibration damper and guard
  • Starter motors – 12V or 24V
  • Integral engine oil cooler
  • Closed crankcase ventilation system
  • Fuel cooler (optional)
  • Gear-driven seawater pump (rubber impeller)
  • Common rail fuel system
  • Self-tensioning multi-vee alternator drive belt
  • Electric fuel priming pump
  • Corrosion-resistant sea water aftercooler
  • Fin and tube-type jacket water heat exchanger
  • Front and rear engine mounting brackets
  • Fuel System
    • SOLAS double wall high-pressure fuel lines
  • General
    • Engine-mounted secondary alternator - 24V 55 amp or 12V 100 amp
    • Analogue gauge displays
    • Glow plugs
    • Mechanical throttle converter for repower
  • Cooling System
    • Transmission gear oil cooler (engine mounted)
    • Jacket water heater
    • Cabin heater (calorifier) connections
  • Exhaust System
    • Various 5" and 6" water cooled exhaust elbow configurations
  • Lube System
    • Right-hand and high-level left-hand oil dipsticks
×
