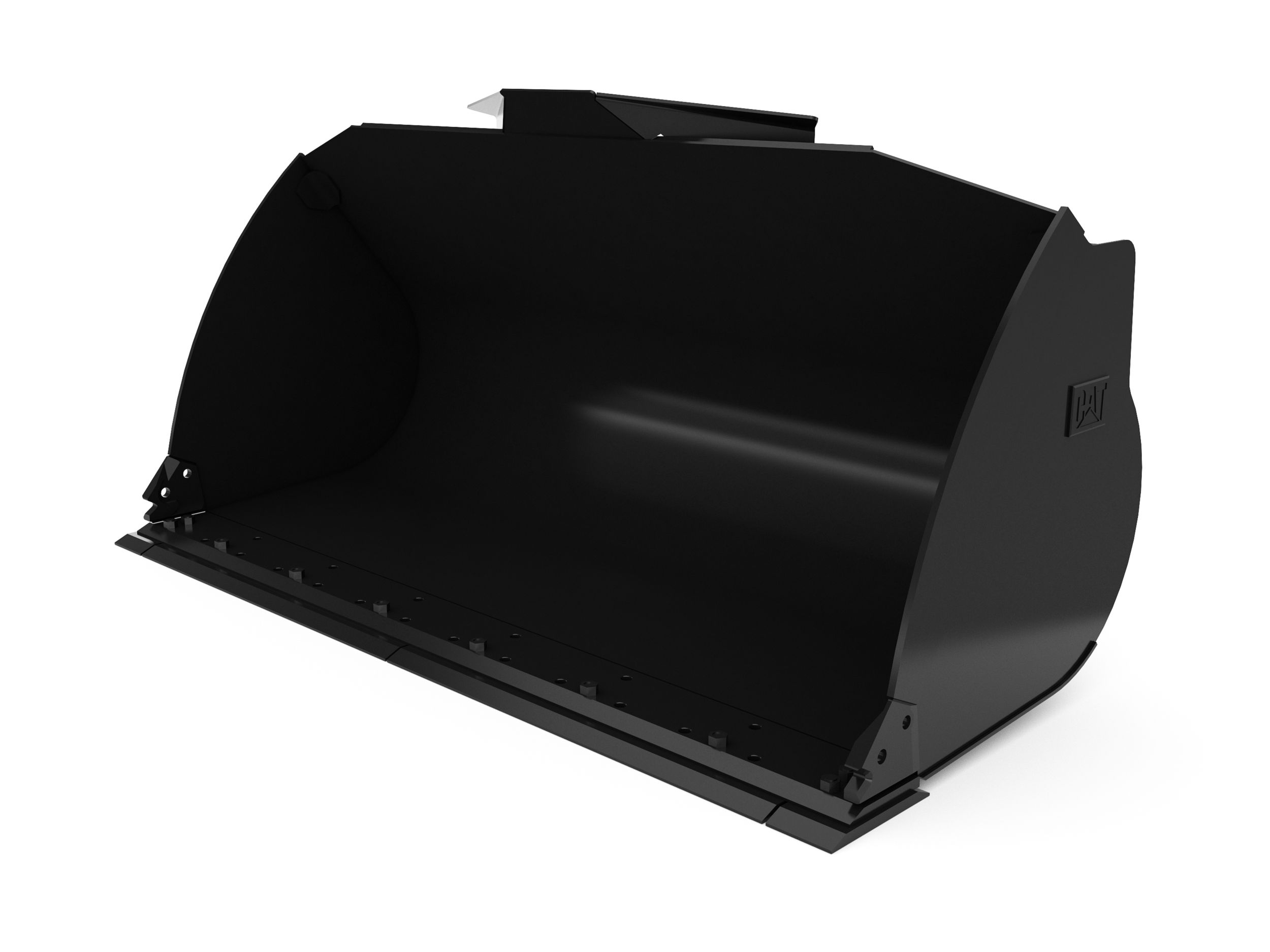

2.7 m3 (3.5 yd3) Fusion™ Coupler General Purpose Bucket – Performance Series With Bolt-On Cutting Edge

Dimensions

Width
107 in
Height
55 in
Weight
2,542 lb
Length
54 in
Capacity
4 yd3
Base Edge Thickness
1 in
Cutting Edge Thickness
1 in
Width
107 in
Height
55 in
Weight
2,542 lb
Base Edge Thickness
1 in
Cutting Edge Thickness
1 in
Length
54 in
Width
54 in
Capacity
4 yd³
Rated Capacity
4 yd³
Width
107 in
Height
55 in
Weight
2,542 lb
Length
54 in
Capacity
4 yd³
Base Edge Thickness
1 in
Cutting Edge Thickness
1 in
Interface Type
Fusion™ Coupler

Specifications

Capacity
4 yd³

Application

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.

Open Throat Design

Open throat design improves heap size and fill factor.

×
