Dimensions
- Working Width
- 73 in
- Overall Width
- 90 in
- Weight
- 926 lb
- Drive Method
- Direct Drive
- Number of motors
- Single
- Required Hydraulic Flow
- 60-114 L/min (16-30 gpm)
- Optimal Hydraulic Pressure
- 207-310 bar (3000-4500 psi)
- Motor Displacement
- 38 in3
- Drum Speed
- 127 rpm @ 80 L/min (21 gpm)
- Height
- 30 in
- Length
- 38 in
- Fasteners
- Cat
- Hydraulic Hose
- Cat XT-3 ES, medium pressure
- Working Depth
- 25-152 mm (1-6 in)
- Number of Hard Face Tines
- 36
- Required Hydraulics
- Standard Flow
- Working Width
- 73 in
- Overall Width
- 89 in
- Height
- 30 in
- Length
- 38 in
- Drum Speed
- 127 rpm @ 80 L/min (21 gpm)
- Motor Displacement
- 38 in³
- Optimal Hydraulic Pressure
- 207-310 bar (3000-4500 psi)
- Required Hydraulic Flow
- 60-114 L/min (16-30 gpm)
- Weight
- 926 lb
- Required Hydraulics
- Standard Flow
- Optimal Hydraulic Flow
- 60-114 L/min (16-30 gpm)
Application

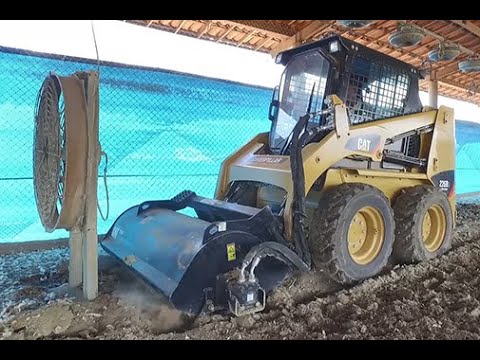

Designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications.
Direct Drive System
Single motor direct drive system is matched to the machine's auxiliary hydraulic system for maximum performance.
Unique Spiral Tine Arrangement
Unique spiral tine arrangement provides 10% greater cutting performance over tillers with standard placements.
Tungsten Carbide Tines
Tines are hardened for maximum strength, durability and wear life in the toughest soil conditions. The bolt-on design provides quick change versatility and extended work tool life.
Two Full-Width Torque Tubes
Two full-width torque tubes provide rigid structural enforcement of tiller housing. Front torque tube design minimizes hood damage caused from larger rocks.
Arm Level Indicator
Arm level indicator provides operator a visual set-up and operating reference with top tiller attachment arms designed parallel to skid shoe.
Adjustable Skid Shoes
Adjustable and replaceable skid shoes with three position tiller depth adjustment allows for tilling depth to be quickly adjusted without skid shoe removal.
Serrated Steps
Serrated steps provide safe ingress and egress from machine cab.
