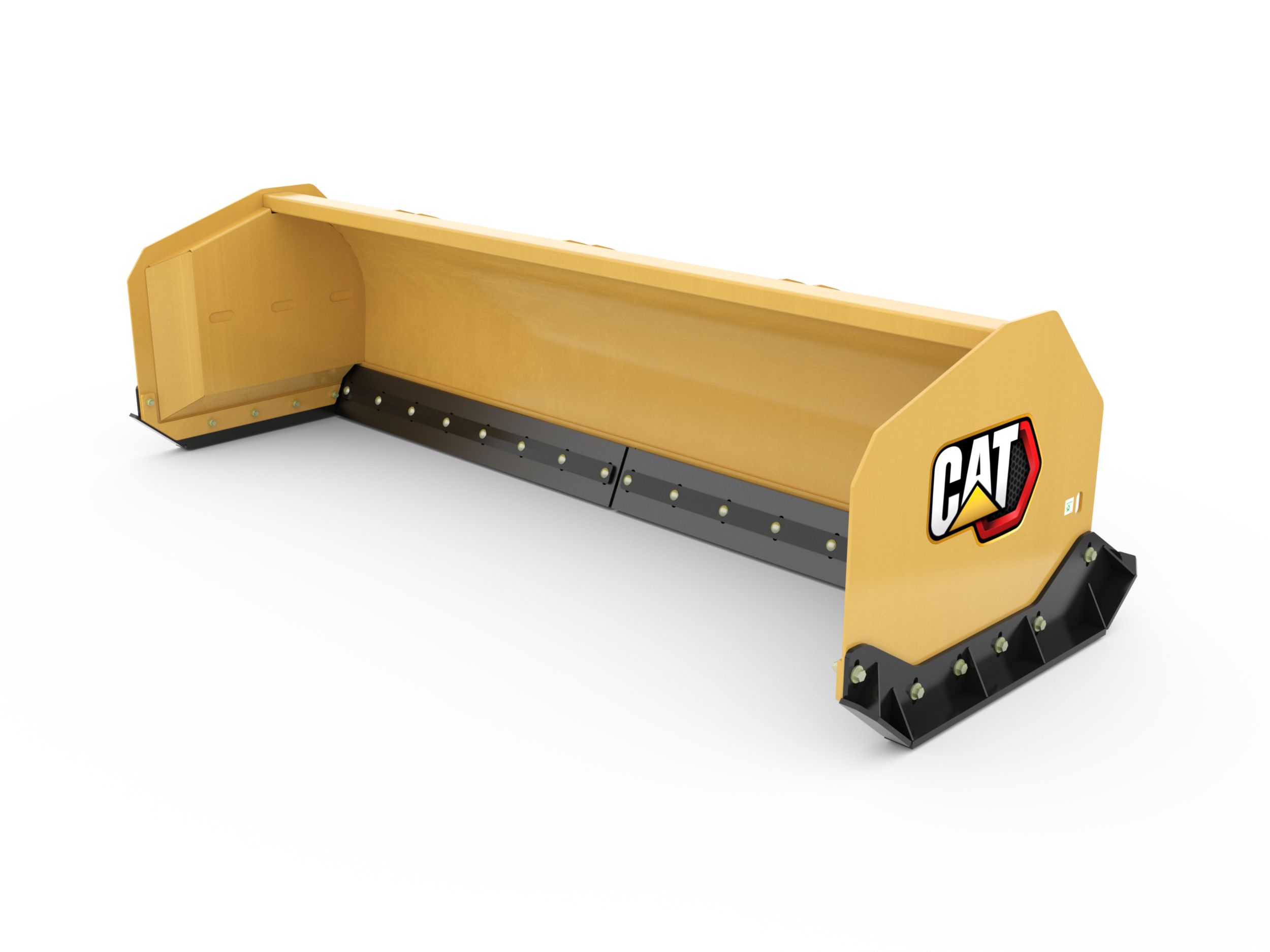

3.05 m (10 ft) Straight Snow Push with rubber trip edge

Dimensions

Weight
1,803 lb
Length
50 in
Working Width
120 in
Moldboard Height
36 in
Overall Height
38 in
Interface
IT
Trip Edge
Rubber With Trip Edge
Trip Edge Height
5 in
Trip Edge Quantity
2
Weight
1,865 lb
Length
69 in
Overall Height
38 in
Interface Type
Bucket Receiver
Trip Edge Type
Rubber With Trip Edge
Overall Width
127 in

Interface Type

Interface Type
Bucket Receiver

Adjustable Trip Edge System

Fitted with up to-two cutting edges, most Cat® Snow Pushes are equipped with a trip edge system incorporated in the base. The sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the Snow Push and machine. A no-trip rubber cutting edge option is available in 2.6 m (8 ft), 3.2 m (10 ft), and 3.8 m (12 ft) sizes that fit all models that utilize a Skid Steer Coupler.

Cutting Edge Options

Rubber or steel, bolt-on cutting edges are available for all size pushes. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.

Streamlined Sidewall Design

Streamlined sidewall support in addition to the large torque tube across the moldboard, delivers long life and high performance in the most demanding of snow removal application. Outside box support is designed to minimize snow cling to the moldboard in addition to providing excellent support to the outer push sections.

Adjustable Skid Shoes

Adjustable skid shoes allow adjustability of cutting edge height to maintain a constant cutting edge depth.

Profiled Moldboard

Profiled moldboard design rolls and folds snow, maximizing capacity of the snow push and improving productivity by minimizing snow clinging to its surface.

Bolt-On Step

Bolt-On step provides safe and ergonomic access to machine cab that is easily replaceable if damaged.

Optional Back Drag

Optional back drag equipped with rubber edge allows snow to be pulled away from loading docks, doors, and other tight spaces.

×
