300.9D VPS & HPU300 Mini Hydraulic Excavator

Request a Quote

Engine

Engine Model: Yanmar 3TNV70
Net Power: 13 hp
Engine Model: Yanmar 3TNV70
Net Power: 13 HP
Emissions: Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

Weights

Operating Weight: 2,399 lb
Operating Weight: 2,399 lb

Operating Specifications – 300.9D VPS

Stick Force: 1,012 lbf
Bucket Force: 2,000 lbf

Engine - 300.9D VPS

Engine Type: Liquid Cooled, 3 Cylinder, Diesel
Gross Power: 13 HP
Fuel Tank Capacity: 3 gal (US)

Dimensions - 300.9D VPS

Shipping Weight: 2,178 lb
Operating Weight: 2,399 lb
Length × Width × Height: 2476 × 700 × 1507 mm (108 × 28 × 59 in)

Hydraulic System - 300.9D VPS

Pump Type: Gear
Pump Flow: 6 gal/min
Operating Pressure - Front Linkage and Travel: 2,466 psi
Operating Pressure - Swing Gear: 1,015 psi
Rotation Speed: 8 r/min
Hydraulic Tank Capacity: 4 gal (US)

Operating Specifications - 300.9D VPS

Digging Depth: 68 in
Dumping Height - Maximum: 80 in
Reach at Ground Level: 119 in
Bucket Force: 2,000 lbf
Stick Force: 1,012 lbf

Travel System - 300.9D VPS

Travel Speed: 1 mile/h
Track Width: 7 in

Blade - 300.9D VPS

Width: 28 in
Height: 8 in
Dig Depth: 7 in
Lift Height: 8 in

Dimensions - HPU300

Operating Weight: 423 lb
Length × Width × Height: 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in)

Motor - HPU300

Motor Type: 3 Phase Electric Motor
Performance: 10 HP
Input Current: 16A
Motor Type: 1 mile/h
Performance - North America: 12 HP
Performance - Europe: 10 HP

Hydraulics - HPU300

Flow Rate: 5 gal/min
Operating Pressure: 2,756 psi
Connecting Hose Length: 33 ft
Hydraulic Oil Tank Capacity: 2 gal (US)

Dimensions

Dig Depth: 68 in

Versatility in a Compact Size

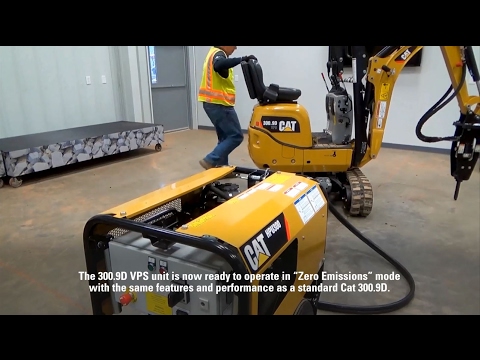

The 300.9D VPS with HPU300 features Dual Mode Selection for a choice of diesel or electric power. This innovative machine delivers zero emissions from electrical supply, low noise, superior power and control. Easily change from diesel to electric power.Both indoor and outdoor jobs are accessible with the under 1000 kg (2,205 lb) weight making trailer transportation between sites easy.

Extending Undercarriage and Blade

An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings.

Foldable Safety Frame

A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.

Simple Controls

The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.

Easy Service

Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.

Attachments

A range of tools is available to take advantage of the machines versatility. All tools are matched to the machine to optimize performance and deliver excellent value through high productivity and long life.
