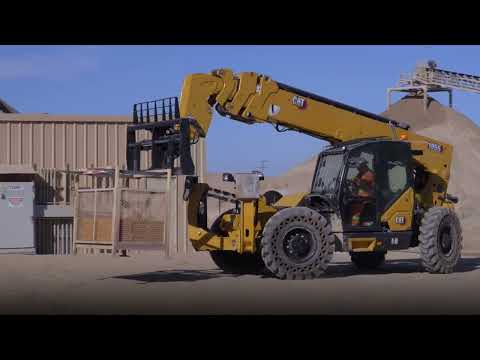

TH1255 Telehandler

  • Exterior View
  • Interior View
Request a Quote

Engine - Standard

Model
Cat C3.6
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power
ISO 14396:2002
Gross Power
74 hp
Displacement
220 in³

Engine - Option 1

Model*
Cat C3.6
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power
ISO 14396:2002
Gross Power
115 hp
Displacement
220 in³

Operating Specifications

Rated Load Capacity
12,000 lb
Maximum Lift Height
55 ft
Maximum Forward Reach
41 ft
Frame Leveling
10 degrees
Drawbar Pull - Loaded
29,225 lbf
Capacity at Maximum Lift Height (Stabilizers Down)
5,000 lb
Capacity at Maximum Forward Reach (Stabilizers Down)
3,500 lb
Operating Weight
31,238 lb
Maximum Ground Bearing Pressure (Solid Tires)
230 psi
Maximum Ground Bearing Pressure (Pneumatic Tires)
175 psi
Travel Speed – Forward
18 mile/h
Travel Speed – Reverse
13 mile/h
Turning Radius over Tires (2-wheel steer)
259 in³
Turning Radius over Tires (4-wheel steer)
157 in
Note
Operating Specifications, and Dimensions are based on 55 kW (74 hp) engine, pnuematic tires, open canopy, 1829 mm (72 in) standard carriage, 1829 mm (72 in) forks, full fluids, and 80 kg (176 hp) engine.
Note (1)
Travel Speeds and Drawbar Pull are based on the 86 kW (115 hp) engine.

Weight Additions (add to base configured weight)

Engine*
194 lb
Enclosed Cab (with Air Conditioning)
364 lb
Solid Tires
1,905 lb
Fenders (set of 4)
119 lb
Note
* 86 kW (115 hp) Engine

Hydraulic System

Auxiliary Hydraulic Flow
15 gpm
Auxiliary Hydraulic Pressure
4,061 psi
Maximum Pump Flow
37 gpm
System Operating Pressure
4,061 psi

Service Refill Capacities

Fuel Tank
39 gal (US)
Diesel Exhaust Fluid (DEF) Tank
5 gal (US)
Hydraulic Tank
24 gal (US)
Hydraulic System
44 gal (US)
Engine Crankcase
2 gal (US)
Transmission
5 gal (US)
Transfer Case
1 gal (US)
Note
Diesel Exhaust Fluid (DEF) is only applicable for 86 kW (115 hp) engine option.

Transmission Speeds

Forward
4 Gears
Reverse
3 Gears

Tires

Option (1)
17.5-25 Galaxy Giraffe XLW L-2 (Air)
Option (2)
14-24 Camso TLH 792S (Solid)
Option (3)
14-24 Maxam MS709 (Solid)

Braking System

Service Brakes
Inboard wet disc brakes on front and rear axles
Parking Brakes
Wet disc, spring applied hydraulic release (front axle)

Boom Performance

Boom Down
18.1 sec
Boom Up
16.4 sec
Tele In
19.4 sec
Tele Out
20.5 sec

Dimensions (Approximate)

Height - Machine Rear
106 in
Overall Length to Front of Carriage
252 in
Overall Width - Stabilizers Down
146 in
Overall Width - Standard Tires
97 in
Wheel Base
131 in
Ground Clearance
18 in

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains 0.68 kg (1.5 lb) of refrigerant. The refrigerant is either R134a or R1234yf. If equipped with R134a (Global Warming Potential = 1430), the refrigerant in the system has a CO2 equivalent of 0.972 metric

Sustainability

Recyclability
98%

Sound

Exterior Sound
82 dB(A)
Operator Sound
79 dB(A)

Comfortable Operator Station

Easy To Operate

Safety On The Job Site

Simple Service For More Uptime

Lower Operating Costs

Cat Attachments

  • Engine
    • 55 kW (74 hp)
  • Cold Weather
    • Battery disconnect with lockout feature
  • Operator Station
    • Canopy
  • Operating Enhancers
    • Operator Presence Seat Switch
    • Camera, rearview
    • Load Stability Indicator (LSI)
  • Operator Seat
    • Seat – Mechanical Suspension
  • Seat Belt
    • Seat belt – 51 mm (2 in)
  • Operator Station Accessories
    • USB dual charging port (USB-A and USB-C)
    • Security, 4 digit operator code enabled
    • Wiper, front (enclosed cab only)
  • Fenders
    • Cab fender (Left Hand front)
  • Other Options
    • Frame cover
    • Retrieval hitch
  • Lights
    • LED work lights – cab, boom
  • Telematics
    • PLE643 – Product Link™ Elite
  • Attachment Coupler
    • TH Coupler (Manual)
  • Auxiliary Hydraulic Connections
    • Capped auxiliary hydraulic lines
  • Stabilizers
    • Front Stabilizers
  • Engine
    • 86 kW (115 hp)
  • Cold Weather
    • Cold Weather Package
    • Dual Battery, heavy duty
    • Engine Block Heater
    • Ether Starting Aid
  • Operator Station
    • Enclosed Cab, heat
    • Enclosed Cab, heat, air conditioner
  • Operator Seat
    • Seat – Mechanical Suspension Plus
  • Seat Belt
    • Seat belt – 75 mm (3 in)
    • Seat belt with Indicator – 75 mm (3 in)
  • Operator Station Accessories
    • Security, Bluetooth® key
    • Hydraulic lockout switch
    • Wiper, rear (enclosed cab only)
    • Wiper, roof (enclosed cab only)
    • Sunshade (top window)
    • Padlocks (set of 4)
  • Fenders
    • Fenders (4 Wheels)
  • Guarding
    • Window guard, front
    • Window guard, top
  • Other Options
    • Boom prop
  • Lights
    • Beacon
    • Roading lights
  • Tires
    • Galaxy – pneumatic directional
    • Camso – solid directional
    • Maxam – solid non-directional
  • Attachment Coupler
    • IT Coupler (Manual)
    • IT Coupler (Hydraulic)
  • Auxiliary Hydraulic Connections
    • Twist to connect hydraulic quick disconnects
  • Carriage
    • Standard – 1270 mm (50 in)
    • Standard – 1829 mm (72 in)
    • Side Tilt/Rotating – 1270 mm (50 in)
    • Side Tilt/Rotating – 1829 mm (72 in)
    • Hydraulic Fork Positioner – 1829 mm (72 in)
  • Forks
    • Pallet Forks – 1220 mm (48 in)
    • Pallet Forks – 1525 mm (60 in)
    • Pallet Forks – 1829 mm (72 in)
  • Other Work Tool Attachments
    • General Purpose Bucket
    • Truss Boom – 3.7 m (12 ft)
×
