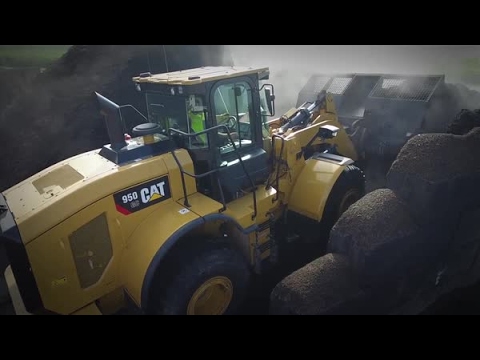

950 GC Wheel Loader | Front Loader

Overview
Net Power - ISO 9249
225 hp
Operating Weight
41,554 lb
Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)
  • Exterior View
  • Interior View

Engine

Net Power - ISO 9249
225 hp
Engine Model
Cat C7.1 ACERT
Max Power @ 1,700 rpm – SAE J1995
241 hp
Max Power @ 1,700 rpm – ISO 14396
240 hp
Displacement
428 in3
Max Power @ 1,700 rpm – ISO 14396 (metric)
243 hp
Max Net Power @ 1,700 rpm – SAE J1349
225 hp
Max Net Power @ 1,700 rpm – ISO 9249
225 hp
Max Net Power @ 1,700 rpm – ISO 9249 (metric)
228 hp
Peak Gross Torque (1,400 rpm) – SAE J1995
811 lbf-ft
Peak Gross Torque (1,400 rpm) – ISO 14396
805 lbf-ft
Bore
4 in
Stroke
5 in
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
Net Power - ISO 9249
225 HP
Engine Model
Cat C7.1
Displacement
428 in³
Maximum Net Power - 1,700 rpm - ISO 9249
225 HP
Maximum Net Power - 1,700 rpm - ISO 9249 - Metric
228 HP
Maximum Net Power - 1,700 rpm - SAE J1349
225 HP
Maximum Power - 1,700 rpm - ISO 14396
240 HP
Maximum Power - 1,700 rpm - ISO 14396 - Metric
243 HP
Maximum Power - 1,700 rpm - SAE J1995
241 HP
Peak Gross Torque - 1,400 rpm - ISO 14396
805 ft·lbf
Peak Gross Torque - 1,400 rpm - SAE J1995
811 ft·lbf
Bore
4 in
Stroke
5 in
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
Emissions
Tier 4/Stage V

Weights

Operating Weight
41,554 lb
Note
For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound
Operating Weight
41,554 lb

Buckets

Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)
Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)

Transmission

Forward 1
5 mph
Forward 2
8 mph
Forward 3
14 mph
Forward 4
22 mph
Reverse 1
5 mph
Reverse 2
8 mph
Reverse 3
14 mph
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.
Forward - 1
5 mile/h
Forward - 2
8 mile/h
Forward - 3
14 mile/h
Forward - 4
22 mile/h
Reverse - 1
5 mile/h
Reverse - 2
8 mile/h
Reverse - 3
14 mile/h
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.

Service Refill Capacities

Cooling System
13 gal
Crankcase
5 gal
Transmission
12 gal
Differentials and Final Drives – Front
11 gal
Differentials and Final Drives – Rear
10 gal
Hydraulic Tank
30 gal
DEF Tank
4 gal
Fuel Tank Size
77 gal (US)
Cooling System
13 gal (US)
Crankcase
5 gal (US)
DEF Tank
4 gal (US)
Differential - Final Drives - Front
11 gal (US)
Differential - Final Drives - Rear
10 gal (US)
Hydraulic Tank
30 gal (US)
Transmission
12 gal (US)

Operating Specifications

Breakout Force
34,638 lbf
Static Tipping Load Full 38° Turn – ISO 14397-1*
24,264 lb
Static Tipping Load Full 38° Turn – Rigid Tires**
25,875 lb
Note
For a machine configuration as defined under “Weight.”
Note
*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note
**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.

Hydraulic System

Steering System Pump Type
Piston
Implement System: Maximum Pump Output @ 2,390 rpm
68 gal/min
Implement System: Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)
4,047 psi
Hydraulic Cycle Time – Total Cycle Time
9 Seconds
Steering System - Pump Type
Piston
Hydraulic Cycle Time - Total Cycle Time
9 s
Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min)
4,047 psi
Implement System - Maximum Pump Output at 2,390 rpm
68 gal/min

Sound

With Cooling Fan Speed at Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)
73 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Power Level (ISO 6395:2008)
109 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Pressure Level (SAE J88:2013)
76 dB(A)*
Note
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)**
73 dB(A)
With Cooling Fan Speed at 70% of Maximum Value: Exterior Sound Power Level (ISO 6395:2008)**
107 LWA***
Note
**For machines in European Union countries and in countries that adopt the “EU Directives.”
Note
***European Union Directive “2000/14/EC” as amended by “2005/88/EC.”
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)
109 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)
76 dB(A)*
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)
73 dB(A)
Note (1)
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note (2)
**For machines in European Union countries and in countries that adopt the "EU Directives."
Note (3)
***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**
107 LWA***
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**
73 dB(A)
With Cooling Fan Speed at Maximum Value – Note
Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)
With Cooling Fan Speed at 70% of Maximum Value: Note (1)
For machines in European Union countries and in countries that adopt the EU Directives
With Cooling Fan Speed at 70% of Maximum Value: Note (2)
European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at Maximum Value - Note
Distance of 15 m (49.2 ft), moving forward in second gear ratio.

Dimensions

Height to Top of Hood
9 ft
Height to Top of Exhaust Pipe
11 ft
Height to Top of ROPS
11 ft
Ground Clearance
2 ft
B-Pin Height
14 ft
Center Line of Rear Axle to Edge of Counterweight
7 ft
Wheelbase
11 ft
Center Line of Rear Axle to Hitch
5 ft
Rack Back - Maximum Lift
60 degrees
Rack Back - Carry
45 degrees
Rack Back - Ground
40 degrees
Lift Arm Clearance
12 ft
Note
All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.
Centerline of Rear Axle to Edge of Counterweight
7 ft
Note
All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.
Height - Top of ROPS
11 ft
Height - Top of Exhaust Pipe
11 ft
Height - Top of Hood
9 ft
Ground Clearance
2 ft
Wheel Base
11 ft
Centerline of Rear Axle to Hitch
5 ft

Weights and Operating Specifications

Operating Weight
41,554 lb
Tipping Load - Full Turn - ISO 14397-1*
24,264 lb
Tipping Load - Full Turn - Rigid Tires**
25,875 lb
Breakout Force
34,638 lbf
Note (1)
For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound
Note (2)
*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note (3)
**Compliance to ISO (2007) 14397-1 Sections 1 thru 5.

Engine - Tier 4 Final/Stage IV

Emissions
Tier 4/Stage IV
Emissions
Tier 4/Stage IV

RELIABILITY YOU CAN COUNT ON

  • Cat® C7.1 engine offers increased power density with a combination of proven electronic, fuel, and air systems.
  • Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
  • Thorough component design and machine validation processes result in unmatched reliability and uptime.

ACHIEVE GREATER PRODUCTIVITY

  • The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
  • Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
  • Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

DO MORE WITH LESS FUEL

  • Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
  • Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
  • Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

DESIGNED FOR OPERATORS

  • The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
  • Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
  • The adjustable steering column includes the F-N-R shifter and turn signal control lever.
  • Unmatched viewing area with a wide, flat, and distortion-free front windshield.
  • The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
  • The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
  • Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

SAFELY HOME EVERY DAY

  • Ladders are standard on both sides of the machine to easily access the platforms.
  • Platforms are equipped with guard- and handrails for safe access to the cab.
  • The main cab door opens to the front and provides wide access to the operator environment.
  • Front and back wipers ensure that a clear view is maintained.
  • External rearview mirrors with integrated spot mirrors arestandard.
  • A rear vision camera is standard to clearly monitor movement behind the machine.
  • Hinged wheel guards, easy removal/re-install.
  • Optional windshield and power train guards.

SAVE ON SERVICE AND MAINTENANCE

  • Grouped service points and sight gauges allow for easy daily maintenance.
  • Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
  • Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
  • A rear swing-up grill gives easy cleaning access to thecooling cores.
  • Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
  • Caterpillar design and manufacturing techniques assureoutstanding service life.

CAT PRODUCTION MEASURMENT KIT

  • This optional kit is simple to install compared to other 3rd party payload systems*.
  • On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
  • Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
  • Increases productivity, weighing while lifting with no interruptions in loading cycle.
  • High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
  • Improve efficiency with less rework; save time, labor, fuel,and costs.

    * Not available in all markets
    ** Not legal for trade

  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Power Train
    • Engine - Cat C7.1 meets Tier 4 Final/Stage IV emissions standards
    • Torque converter
    • Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
    • Brakes, full hydraulic enclosed wet-disc
    • EIMS (Engine Idle Management System)
    • EIS (Auto Idle Shutdown)
    • Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
    • Filter, fuel primary-water separator/secondary
    • Radiator, unit core (9.5 fpi) with ATAAC
    • Starting aid, glow plugs
    • Switch, transmission neutralizer lockout
  • Hydraulics
    • Load sensing implement system pilot operated
    • Dedicated load sensing steering pump
    • Dedicated brake and fan gear pump
  • Electrical
    • Alarm, back-up/main disconnect switch
    • Alternator (145-amp, brush type)
    • Batteries (2), maintenance free
    • Ignition key; start/stop switch
    • Lighting system, halogen (6 total) - Four (4) halogen work lights; Two (2) halogen road lights
    • Starting and charging system (24-volt)
    • Starter, electric (heavy duty)
  • Operator Environment
    • Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
    • Bucket/work tool function lockout
    • Cab, pressurized and sound suppressed
    • Hydroformed (ROPS/FOPS) structure
    • 12V power port (10A)
    • Coat hook
    • Radio ready
    • Rear vision camera and display
    • Pilot hydraulic controls, lift and tilt function
    • Computerized monitoring system
    • Gauges - Engine coolant temperatures/fluid level; Hydraulic/transmission oil temperature; Tachometer/DEF level
    • Digital indicators - Gear indicator; Speedometer; Service meter units; Fault codes
    • Warning indicators - Air inlet heater; Electrical malfunction; Engine inlet manifold temperature; Engine oil pressure, fuel level; Fuel pressure high/low; Hydraulic oil level, parking brake; Primary steering oil pressure; Service brake oil pressure; Action light, engine malfunction; Transmission filter bypass
    • Heater and defroster
    • Horn
    • Cup holders and personal tray on right console
    • Storage tray behind seat
    • Mirrors, rearview external
    • Seat, Cat Comfort (clotch) suspension
    • Seat belt
    • Steering column, adjustable angle
    • Wipers/washers (front and rear)
    • Window, sliding (left and right side)
  • Tires, Rims, And Wheels
    • Tires are available from Triangle, Maxam and Bridgestone
    • Offerings vary by region. Consult your local Cat dealer for further details
  • Fluids
    • Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)
  • Other Standard Equipment
    • Lift and bucket return-to-dig kick outs (Electro-Magnetic), mechanical adjustment
    • Couplings, Cat O-ring face seal
    • Doors, service access (locking)
    • Front fender, steel
    • Grill, airborne debris
    • Hitch, drawbar with pin
    • Hood, wing doors
    • Hoses, Cat XT
    • Counterweight
    • Linkage, Z-bar, fabricated crosstube/tilt lever
    • SOS oil sampling valves
    • Sight gauges - Engine coolant, hydraulic oil; Transmission oil level
    • Diagnostic pressure taps
    • Product Link Ready
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Optional Equipment
    • Cold weather starting (jacket water heater, electric and ether starting aid)
    • Third hydraulic function, additional dedicated single axis level
    • Quick coupler control
    • Limited slip differentials
    • Ride control
    • Air suspended seat
    • Secondary steering, electrical
    • Reversing cooling fan (auto/manual controlled)
    • Toolbox
    • Sun visor, rear
    • High capacity converted 12V/15A
    • Warning beacon
    • Extra working lights (4), Halogen or LED
    • Radio
    • Fender extensions/roading
×
